Architectural-grade fenestration solutions engineered for extreme energy conservation, low U-factors, and strict compliance with North American and European structural benchmarks.
Establishing global benchmarks in ultra-low energy fenestration manufacturing, structural security integration, and specialized climate compliance.
Since 2008, ArmorSafe Entry Door Systems Co., Ltd. has stood as a pioneer in high-security residential and commercial entry doors and advanced architectural window envelope systems. With 18 years of specialized manufacturing background and 10 years of intensive export history, we operate a state-of-the-art 22,000 sq ft factory that yields an annual export revenue of $25 million. Leveraging rich international trade expertise and 620 global supply chain partners, we cater primarily to B2B Importers, Architectural Hardware Distributors, Engineering Contractors, and Big-Box Retailers across South America, North America, and Western Europe.
We maintain uncompromising technical standards through a dedicated team of 30 Quality Control (QC) personnel who execute strict dimensional checks, salt spray corrosion tests, air/water infiltration resistance, and structural force-resistance testing. Our active R&D division, comprising 48 structural and thermal engineers, introduced 85 new product lines past year alone, providing global B2B clients with flexible customization options ranging from soundproofing insulating cores to custom stainless steel multi-point lock hinges and biometric electronic lock cutouts.
Deconstructing the thermodynamic imperatives of ultra-low energy buildings, carbon-neutral architecture, and advanced glazing tech.

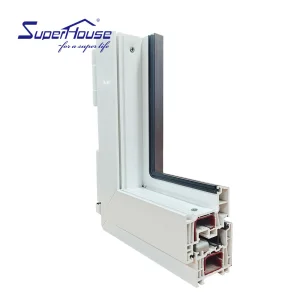

Passive House standards dictate an airtight, fully insulated building envelope. Traditional window frames act as major thermal bridges, causing immense conductive heat loss. ArmorSafe incorporates Technoform polyamide (PA66GF25) reinforced thermal break strips up to 39mm wide, supplemented by aerogel insulation infills. This multi-chamber configuration eliminates continuous thermal pathways, reducing line thermal transmittance ($\Psi$) to sub-0.01 W/mK levels.
Uncontrolled air leakage degrades HVAC efficiency and introduces internal moisture condensation risks. Our windoors utilize triple-sealed continuous EPDM gasketing systems paired with multi-point locking hardware. Through rigorous blower-door testing, our assemblies achieve air permeability values significantly lower than standard commercial grade requirements, guaranteeing zero draught and preserving internal indoor air quality (IAQ).
Glazing units comprise over 70% of a fenestration opening. We supply triple (and optional quadruple) insulated glass units (IGUs) coated with double or triple silver Low-Emissivity (Low-E) films (e.g., Sungate, Solarban). Argon or Krypton gas filling (90%+ concentration) combined with Warm-Edge TPS (Thermoplastic Spacer) tech lowers overall window thermal transmittance ($U_w$) to below $0.8 \text{ W/m}^2\text{K}$ ($0.14 \text{ BTU/h}\cdot\text{ft}^2\cdot^\circ\text{F}$).
| Technical Performance Metric | Passive House Institute (PHI) Standard | ArmorSafe High-Spec Series | Standard Commercial Window |
|---|---|---|---|
| Overall U-Factor ($U_w$) | $\le 0.80 \text{ W/m}^2\text{K}$ | $0.65 - 0.78 \text{ W/m}^2\text{K}$ | $1.80 - 2.40 \text{ W/m}^2\text{K}$ |
| Solar Heat Gain Coefficient (SHGC) | Optimized per climate (0.30 - 0.50) | Customizable (0.22 - 0.52) | 0.60 - 0.75 |
| Air Infiltration (ASTM E283) | $< 0.05 \text{ cfm/ft}^2$ | $< 0.01 \text{ cfm/ft}^2$ | $0.30 \text{ cfm/ft}^2$ |
| Acoustic Attenuation (STC/OITC) | $\ge 35 \text{ dB}$ | STC 42 - 48 dB / OITC 36-40 dB | STC 26 - 30 dB |
| Structural Wind Load Resistance | DP 50 minimum | Up to DP 100 (Miami-Dade NOA Level) | DP 30 |
Fully automated CNC profile processing, robotic glass assembly, and structural framing calibration inside our 22,000 sq ft production facility.
30 QC specialists verifying air infiltration, water resistance, thermal conductivity, optical clarity, and mechanical durability.
Driven by 48 senior engineers developing over 85 customized product lines annually, utilizing finite element analysis (FEA) and thermal simulation software.
Tailored structural fenestration systems tailored to strict climate zones and international building code mandates.

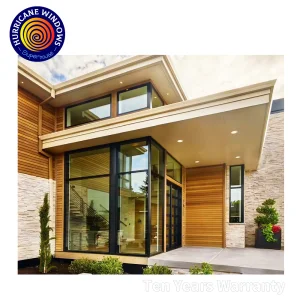

Designed specifically for compliance with California Code of Regulations (Title 24) and National Fenestration Rating Council (NFRC) labeling. Ideal for high-end modern residential projects in USA and Canada requiring certified SHGC, U-factor, and Visible Transmittance ratings.
Features heavy-duty aluminum alloys (6063-T6), multi-laminated impact glass (PVB/SGP interlayers), and reinforced stainless steel hinges. Certified under Florida Product Approval (FPA) and Miami-Dade NOA standards to withstand cyclic wind pressures up to DP 100.

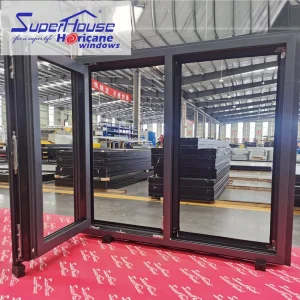

Incorporates heavy thermal breaks, quad-glazed warm-edge spacer technology, and perimeter heating element integrations to eliminate frame frost formation under extreme temperatures reaching -40°C.
Architecting the future of sustainable, intelligent, and zero-carbon building enclosures.
Transitioning from gas-filled IGUs to ultra-thin Vacuum Insulated Glass (8mm total thickness) featuring thermal performance equal to a 50mm triple-glazed unit ($U_g \le 0.40 \text{ W/m}^2\text{K}$). This technology dramatically reduces structural profile depth while maximizing daylighting transparency.
Embedding smart IoT-driven electrochromic layers that automatically adjust solar transmittance (SHGC from 0.09 to 0.45) based on real-time solar radiation sensors and building automation systems (BAS), reducing HVAC cooling loads by up to 35% in commercial towers.
Pioneering the use of 80%+ post-consumer recycled aluminum alloy extruded using green hydropower energy, drastically reducing embodied carbon footprints and aligning with European EPBD mandates for net-zero emissions by 2030.
In-depth responses for architects, contractors, importers, and hardware distributors.

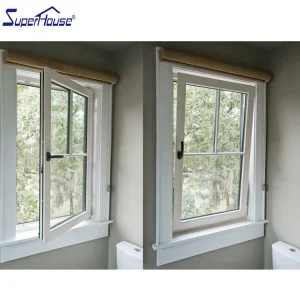

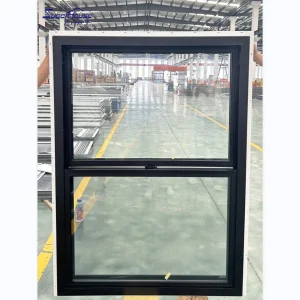

Explore our complete catalog of specialized architectural fenestration, hurricane impact single hung windows, tilt-and-turn units, and ultra-narrow luxury door systems.
