Explore our NFRC, AAMA, and NOA certified aluminum tilt & turn window configurations engineered for demanding architectural specifications.
Since 2008, ArmorSafe Entry Door Systems Co., Ltd. has stood as a pioneer in high-security residential and commercial entry doors and specialized fenestration. With 18 years of manufacturing background and 10 years of export history, we operate a 22,000 sq ft factory that yields an annual export revenue of $25 million. Leveraging rich international trade expertise and 620 supply chain partners, we cater primarily to Importers, Hardware Distributors, and Big-Box Retailers in South America and Western Europe. We maintain uncompromising standards through a team of 30 QC personnel who execute strict dimensional checks, salt spray corrosion tests, and force-resistance testing. Our active R&D team, comprising 48 engineers, introduced 85 new product lines past year, providing clients with flexible customization options ranging from soundproofing cores to custom stainless steel hinges and electronic lock cutouts.
An in-depth structural analysis of dual-mode perimeter gear systems, thermal barrier polymers, and energy transmission dynamics in modern envelope engineering.
The aluminum tilt & turn window represents the pinnacle of European mechanical fenestration design. Operating via a single ergonomic drive handle, the perimeter gear hardware (driven by corner drives, drive gears, and locking cams) shifts between two distinct operational modes:
Raw aluminum possesses high thermal conductivity ($k \approx 200 \text{ W/m}\cdot\text{K}$). To meet global Zero Energy Building (ZEB) and Passivhaus standards, our extrusions employ multi-chamber 6063-T6 aluminum profiles structurally separated by high-precision Polyamide (PA66GF25) thermal break struts.
Air infiltration and noise pollution are countered through a triple-gasket perimeter sealing network constructed from synthetic EPDM (Ethylene Propylene Diene Monomer) rubber:
| Performance Indicator | Standard Testing Protocol | ArmorSafe Engineering Value | Architectural Benefit |
|---|---|---|---|
| Thermal Transmittance (U-Value) | NFRC 100 / EN ISO 10077-2 | 0.14 - 0.22 BTU/h·ft²·°F (0.8 - 1.25 W/m²K) | Extreme HVAC load reduction & energy compliance |
| Air Infiltration Resistance | ASTM E283 / EN 12207 | < 0.01 cfm/ft² (Class 4 / Highest Level) | Eliminates drafts, air leakage, and thermal drift |
| Water Penetration Resistance | ASTM E331 / EN 12208 | 15 psf / 750 Pa (Class E900) | Zero water ingress under severe storm conditions |
| Structural Wind Load (DP) | ASTM E330 / AAMA 101 | Design Pressure up to DP70 - DP100 (HVHZ) | Withstands category 5 hurricane wind velocity |
| Acoustic Attenuation | ASTM E90 / ISO 140-3 | STC 38 - 45 dB / OITC 32 - 38 dB | Unmatched noise cancellation for urban high-rises |
Every aluminum tilt & turn window profile undergoes rigorous automated fabrication, structural joining, and glass unit assembly inside our 22,000 sq ft facility.
Our 30-person Quality Control division tests 100% of export batches using state-of-the-art laboratory testing rigs to guarantee zero-defect compliance with global standards.
Our 48-member engineering team develops customized architectural extrusion profiles, static load calculations, and tailor-made hardware integrations using advanced structural BIM/CAD modeling.
Customized window structural engineering tailored to demanding micro-climates and strict regional building codes.

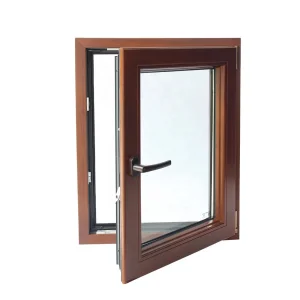

Geographic Target: Florida, Caribbean, Gulf Coast, Typhoon-Prone Coastal Asia.
Engineering Solution: Outfitted with SGP laminated impact-resistant glass, heavy-duty wall extrusion profiles, and Miami-Dade NOA approval. Fluorocarbon AkzoNobel D2015 powder coating protects against salt spray corrosion exceeding 3,000 hours in ASTM B117 salt fog testing.
Geographic Target: Canada, Northern Europe, Alpine Regions, Northern China.
Engineering Solution: Triple-glazed units filled with 90% Argon gas, dual Warm-Edge composite spacers, Low-E solar reflective coatings, and 34mm multi-chamber PA66 thermal breaks to prevent interior condensation during sub-zero (-30°C) winter snaps.

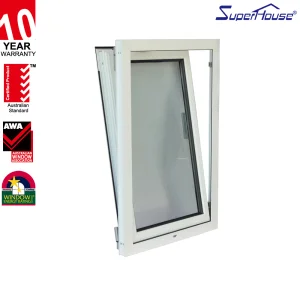

Geographic Target: Western European Cities, New Zealand, Metropolitan Hubs.
Engineering Solution: Asymmetric acoustic glass combinations (6mm + 12Ar + 8.76mm Laminated acoustic PVB) integrated with hidden multi-point locking gear to eliminate street-level noise while satisfying Title 24 and NZS4211 compliance.
Driving sustainable architectural innovation through next-generation materials and smart building integrations.
Integrating ultra-thin 0.1mm vacuum gaps into tilt & turn sashes. VIG technology achieves U-factors as low as 0.06 BTU/h·ft²·°F (0.35 W/m²K), matching solid insulated wall thermal performance in half the sash depth.
Hidden electronic drive motors embedded directly inside the aluminum extrusion frame. Connected to HVAC building management systems (BMS), windows automatically tilt for night-flushing cooling cycles and close upon sensing rain or air pollution spikes.
Transitioning 100% of raw billet extrusion sourcing to low-carbon aluminum smelted using renewable hydro-power. Utilizing recycled aluminum content up to 75%, drastically reducing scope 3 embodied carbon emissions per window unit.
How our integrated manufacturing hub translates to major schedule efficiency and cost containment for global developers and distributors.
Located within China's primary industrial metal cluster, ArmorSafe maintains direct access to 620 verified material suppliers. From primary 6063-T6 aluminum ingot extrusion to surface powder coating, glass tempering, and hardware assembly, vertical integration eliminates third-party bottleneck delays.
Our automated production lines process over 250,000 square meters of high-end thermal break windows annually. Modular tooling allows swift changeovers for custom architectural extrusions, non-standard RAL color matching, and special glass specs in high-volume production runs.
10 years of intensive export history guarantees seamless customs clearance, ISPM-15 certified wooden crate packaging, container loading optimization (reducing sea freight cost per m²), and full DDP/FOB/CIF shipping logistics support across 45+ countries.
Meeting and exceeding building authority regulations across North America, Europe, Australia, and New Zealand.
| Target Region | Key Regulatory Standards | ArmorSafe Compliance Status | Engineering Deliverables Provided |
|---|---|---|---|
| North America (USA & Canada) | Florida Building Code (TAS 201/202/203), NFRC 100/200/400, AAMA/WDMA/CSA 101/I.S.2/A440 | Florida NOA Certified, NFRC Listed, Title 24 Compliant | PE Stamped Structural Calculations, NOA Documentation, Energy Star Data |
| European Union | CE Marking, EN 14351-1, EN 12207, EN 12208, Passivhaus Standard | CE Certified, Declaration of Performance (DoP) Available | Thermal Bridging FEA Simulations, Factory Production Control (FPC) Audit |
| Australia & New Zealand | AS 2047 (Windows in buildings), AS 1288 (Glass in buildings), NZS 4211 | Tested to AS2047 Extra High Wind Zones | NATA Accredited Laboratory Test Reports, Water Pressure Validation |
Expert insights for architects, structural engineers, trade importers, and general contractors.
Browse additional factory-direct tilt & turn window configurations tailored for commercial hotels, multi-family developments, and passive villas.
