Explore our export-ready, structural fixed aluminum window systems engineered for global building codes, extreme structural wind loads, and optimal thermal isolation.
Architectural Demand Shift Toward High-Performance Structural Glazing and Thermal Isolation Systems

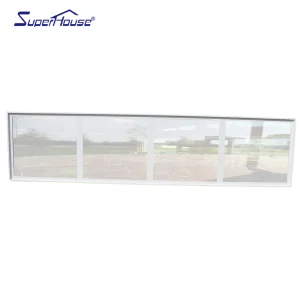

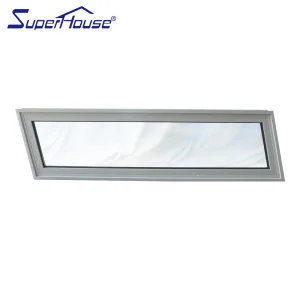

Modern commercial architecture increasingly favors non-operable, large-span aluminum fixed picture windows to eliminate air infiltration pathways, maximize structural integrity under severe wind pressure, and provide continuous acoustic dampening (STC ratings exceeding 42 dB). By deploying precision-extruded 6063-T6 aluminum frames with structural silicone glazed (SSG) assemblies, structural engineers achieve expansive light transmission while maintaining strict building envelope thermal targets.

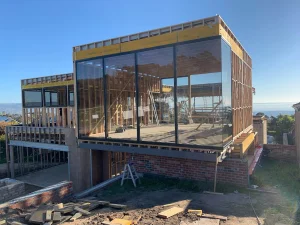

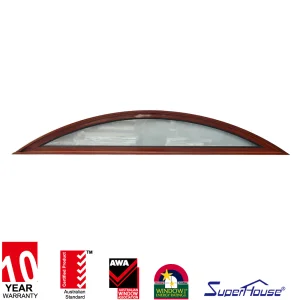

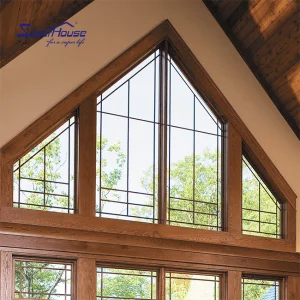

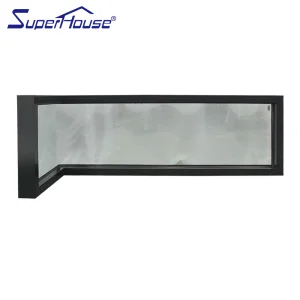

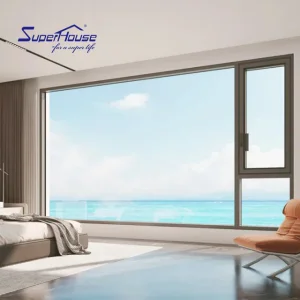

In high-end residential estates, floor-to-ceiling fixed window walls serve as architectural centerpieces. Incorporating multi-pane Low-E glass units, thermal break polyamide isolators, and anti-UV soft-coat layers, these windows lower the Solar Heat Gain Coefficient (SHGC) down to 0.21 while resisting severe thermal stress. B2B importers and project contractors rely on specialized exporters to supply custom-bent, corner-joined, or oversized trapezoidal geometry without compromising structural deflection standards.

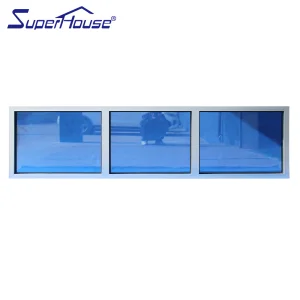

Information Gain Insight: Unlike operable casement or sliding windows, fixed aluminum windows feature zero operable hardware friction points. This structural simplicity allows for significantly lower U-factors ($U_w \le 1.1 \text{ W/m}^2\text{K}$), enhanced water tightness under extreme storm conditions (up to 700 Pa), and structural load endurance exceeding 80 PSF design pressure in coastal hurricane zones.
Driving Strategic B2B Supply Chains Across South America, Western Europe, and North America Since 2008
Material Science, Structural Thermodynamics, and Glass Matrix Engineering
Our aluminum profiles utilize high-density 6063-T6 alloy, providing a tensile strength of $\ge 205 \text{ MPa}$ and yield strength of $\ge 170 \text{ MPa}$. Profiling thickness ranges from 1.4mm for standard residential applications to 3.0mm structural walls for commercial curtain wall fixed glazing.
To prevent energy transmission across the metallic frame, we integrate PA66-GF25 (25% Glass Fiber Reinforced Polyamide) thermal break strips. This reduces profile thermal conductivity from $200 \text{ W/m}\cdot\text{K}$ (raw aluminum) to under $0.3 \text{ W/m}\cdot\text{K}$.

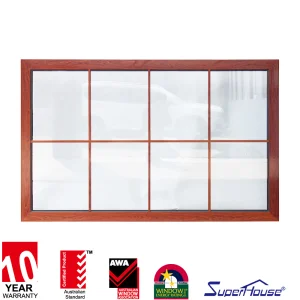

Fixed windows are configured with double or triple Low-E tempered safety glass separated by warm-edge Technoform spacers. Units are backfilled with 90%+ pure Argon gas, reflecting up to 99% of harmful ultraviolet radiation while insulating against acoustic noise.
| Performance Metric | Standard Specification | High-Performance / Hurricane Spec | Testing Standard Compliance |
|---|---|---|---|
| Thermal Transmittance (U-Factor) | 1.8 - 2.2 W/m²K | 1.0 - 1.3 W/m²K (Triple Low-E + Argon) | NFRC 100 / ISO 10077-2 |
| Solar Heat Gain Coefficient (SHGC) | 0.35 - 0.45 | 0.18 - 0.25 (Double Low-E Coating) | NFRC 200 |
| Acoustic Insulation (STC Rating) | 32 - 35 dB | 42 - 48 dB (Laminated PVB/SGP Glass) | ASTM E90 / ASTM E413 |
| Air Infiltration Resistance | < 0.1 cma/ft² | < 0.01 cfm/ft² (Sealed Fixed Glazing) | ASTM E283 / AS2047 |
| Water Penetration Resistance | 300 Pa | 700 Pa - 1000 Pa | ASTM E331 / AS4420.2 |

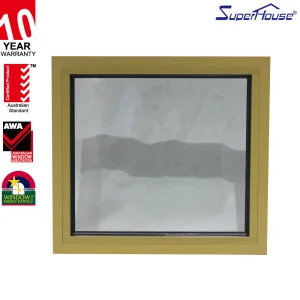

| Structural Wind Load Capacity | ±45 PSF | ±80 PSF to ±120 PSF (Impact Rated) | TAS 202 / ASTM E330 |
13-Stage Precision Engineering Process Ensuring Zero-Defect Assembly for Global Bulk Orders
30 QC Specialists & 48 Engineers Executing Advanced Metrology and Environmental Testing Protocols
Architectural Co-Engineering, Structural Simulations, and Rapid Custom Prototyping
Streamlined Procurement for Global Importers, Distributors, and Architectural Firms
Leveraging a network of over 620 raw material partners, ArmorSafe maintains direct access to primary aluminum ingots, PPG/AkzoNobel architectural powder coatings, and leading flat glass manufacturers (AGC, Saint-Gobain, Xinyi). Our integrated supply ecosystem reduces raw material lead times by 35% compared to regional fabricators, ensuring price stability even during global metal market volatility.

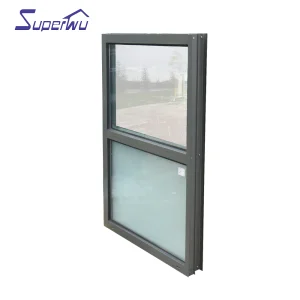

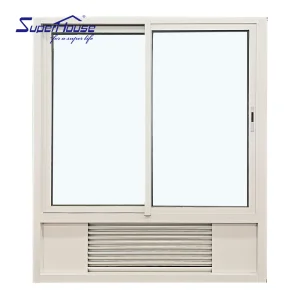

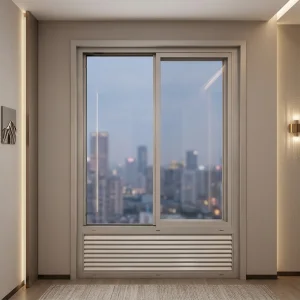

Our engineering team custom-configures export product runs to align with localized building standards: North America (NFRC, ASTM E1886/E1996, Florida Product Approval), Australia (AS2047, AS1288), and Europe (CE Mark, EN 14351-1). From hurricane nail-fins to integrated PTAC louvers for hotel chains like Holiday Inn, we bridge technical specification gaps seamlessly.

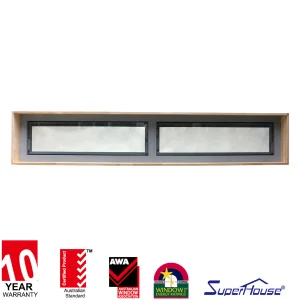

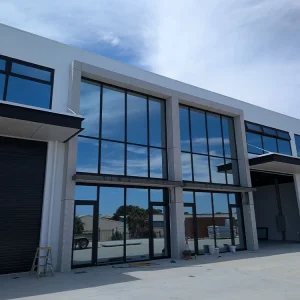

Custom Engineered Commercial Storefronts, PTAC Louvered Units, and High-Acoustic Installations
Direct Engineering Answers for Importers, Architects, and Hardware Wholesalers
