High-performance fenestration hardware compliant with Miami-Dade NOA, NFRC, Florida Building Code, and Australian AS2047 standards.
An engineering assessment of high-load pivot mechanics, thermal break integration, and wind-load performance for international B2B importers, architects, and enterprise distributors.
In contemporary architectural engineering, the entry portal serves as both an aesthetic centerpiece and a critical structural element. Over the past decade, oversized architectural doors have shifted dramatically from traditional side-hinged frames to heavy-duty, floor-supported pivot door mechanisms. Unlike conventional hinges that concentrate dynamic loads and rotational torque exclusively onto the vertical side-jambs, pivot door systems transfer up to 90% of total panel deadweight directly down into the structural subfloor slab via heavy-duty floor pivots.
As **ArmorSafe Entry Door Systems Co., Ltd.** has demonstrated since 2008, manufacturing large-scale pivot doors requires solving complex physics and material science challenges. Panel dimensions exceeding 3,000mm in height and 2,000mm in width subject frames to significant wind-load pressure, thermal deflection (curling effects from solar radiation differentials), and perimeter seal compromises. China’s emergence as the primary global hub for high-precision aluminum extrusion and thermal break engineering has positioned Chinese suppliers—led by ArmorSafe—as indispensable partners for Western European high-end residential firms, North American commercial contractors, and South American luxury developers.
When engineering oversized grand entrances, traditional side-hinges impose massive cantilevered loads, leading to frame sag, latch misalignments, and perimeter air leakage over prolonged operational cycles. Structural pivot hinges resolve this via a vertical axis of rotation offset from the frame jamb by a calculated offset (typically 100mm to 300mm). This structural geometry distributes total weight—often exceeding 450 kg (1,000 lbs) per leaf—directly to an engineered stainless-steel floor pin embedded with high-grade sealed needle bearings.
| Engineering Metric | ArmorSafe Heavy-Duty Pivot System | Standard Commercial Sliding Door | Traditional Exterior Butt-Hinge Door |
|---|---|---|---|
| Maximum Leaf Capacity | Up to 600 kg (1,320 lbs) per panel | Max 250 kg per panel | Max 120 kg per leaf |
| Structural Load Vector | Direct compression into foundation slab | Top track header or bottom roller system | Lateral cantilever pull on vertical side jamb |
| Structural Profile Alloy | Architectural Grade T6 6063 High-Tensile Aluminum | Standard T5 6063 Aluminum | Residential Grade Aluminum / Composite |
| Thermal Insulation (U-Factor) | As low as 0.22 BTU/h·ft²·°F (with PA66 thermal break) | ~ 0.38 BTU/h·ft²·°F | ~ 0.45 BTU/h·ft²·°F |
| Acoustic Attenuation (STC) | STC 42 - 48 (Double laminated IGUs) | STC 30 - 35 | STC 28 - 32 |
| Severe Weather Rating | Miami-Dade NOA & Florida Product Approved (FPA) | Standard Wind-load (DP30 - DP45) | Low DP Rating (DP25 - DP35) |
Deconstructing the structural profile physics, alloy selection, multi-point lock mechanics, and seal geometry of premium Chinese-manufactured pivot systems.
ArmorSafe pivot door profiles utilize primary ingot grade 6063-T6 aluminum alloys extruded to structural wall thicknesses ranging from 2.5mm to 4.0mm. This delivers a minimum ultimate tensile strength of 205 MPa (30,000 psi) and yield strength of 170 MPa (25,000 psi), preventing frame twisting under structural dynamic loads up to +100/-100 PSF.
To eliminate thermal bridging in extreme hot or freezing climates, profiles incorporate 24mm to 34mm Technoform Polyamide PA66 reinforced with 25% glass fiber. This matches aluminum's thermal expansion coefficient while reducing structural profile conductivity to U-factors under 0.25 BTU/h·ft²·°F.
Equipped with heavy-duty Dormakaba or customized German-engineered hydraulic floor springs featuring integrated hold-open (90°/105°) mechanics, dual-speed latch adjustment, anti-slam backcheck functions, and operational longevity certified beyond 500,000 continuous opening cycles.
Utilizing continuous, dual-durometer EPDM (Ethylene Propylene Diene Monomer) vulcanized rubber seals integrated with drop-down automatic floor bottom seals. Achieves Class 4 air permeability and 1500 Pa water tightness under severe hurricane-driven rain simulations.
Structural integrity is augmented via 5-to-9 point automatic motorized locking bolts integrated with smart access systems (biometric, RFID, mobile app integration) or mechanical hook-latches operating on hardened steel gearboxes to resist forced entry techniques.
Equipped with insulated glass units (IGUs) incorporating SentryGlas® (SGP) interlayer laminates, Low-E coatings, argon gas fill, and tempered safety glass to withstand large missile impact tests (ASTM E1886/E1996 & TAS 201/202/203).
Original ArmorSafe Entry Door Systems Co., Ltd. manufacturing footprint: 22,000 sq ft facility, 30 QC auditors, 48 R&D structural engineers.
Since 2008, ArmorSafe Entry Door Systems Co., Ltd. has stood as a pioneer in high-security residential and commercial entry doors. With 18 years of manufacturing background and 10 years of export history, we operate a 22,000 sq ft factory that yields an annual export revenue of $25 million. Leveraging rich international trade expertise and 620 supply chain partners, we cater primarily to Importers, Hardware Distributors, and Big-Box Retailers in South America and Western Europe. We maintain uncompromising standards through a team of 30 QC personnel who execute strict dimensional checks, salt spray corrosion tests, and force-resistance testing. Our active R&D team, comprising 48 engineers, introduced 85 new product lines past year, providing clients with flexible customization options ranging from soundproofing cores to custom stainless steel hinges and electronic lock cutouts.
Ensuring seamless structural authorization across North America, Europe, Australia, and coastal hurricane zones.
Export configurations for coastal Florida and the Caribbean basin undergo rigorous testing to comply with TAS 201 (Large Missile Impact), TAS 202 (Uniform Static Air Pressure), and TAS 203 (Cyclic Wind Pressure Loading). NFRC thermal certification ensures compliance with Energy Star Version 7.0 requirements across Northern and Southern US climate zones.
Engineered for European architectural projects, systems adhere strictly to EN 14351-1 standards covering air permeability (EN 12207 Class 4), watertightness (EN 12208 Class 9A), and wind resistance (EN 12210 Class C5). Thermally broken frames meet stringent German EnEV and Swiss Minergie low-energy house specs.
Compliant with Australian Standards AS2047 (Windows and external glazed doors in buildings) and AS1288 (Glass in buildings selection and installation). Tested for severe acoustic dampening along urban transport corridors and high deflection safety factors up to N6/C4 structural wind ratings.
Tailored structural entry solutions for diverse global microclimates and heavy foot-traffic environments.
Coastal applications in Florida, the Mediterranean, and South American oceanfront developments require specialized surface treatments. ArmorSafe supplies fluorocarbon (PVDF) 3-coat electro-deposition coatings and 25-micron anodized finishes certified to Qualicoat Class 2/3, resisting salt spray corrosion for over 3,000 continuous hours (ASTM B117).
B2B commercial clients operating boutique hotels, retail flagships, and corporate headquarters demand high cycle durability. Our heavy-duty floor pivots feature continuous oil-bath lubricated stainless steel spindles designed to withstand millions of actuations with zero maintenance downtime.
For alpine, sub-zero European regions or high-ambient Middle Eastern developments, double and triple insulated glass units feature argon gas infusion, Warm-Edge Swisspacer bars, and multi-chambered polyamide thermal breaks to maintain interior environmental comfort while minimizing HVAC load.
ArmorSafe's R&D strategy driving smart home integration, vacuum insulation, and magnetic levitation hardware.
Developing zero-friction magnetic levitation floor pivot bearings combined with automated linear servo drives, enabling effortless movement of 800 kg structural panels with less than 5 Newtons of manual force or automated voice/touch commands.
Transitioning from traditional double IGUs to ultra-slim 8mm Vacuum Insulated Glass panels, offering thermal U-factors matching solid insulated walls (U ≤ 0.60 W/m²K) while reducing total sash weight by up to 40%.
Embedding wireless micro-sensors into the door profile frame to continuously monitor mechanical stress, thermal seal integrity, humidity ingress, and cycle counts, transmitting real-time analytics to building maintenance management software.

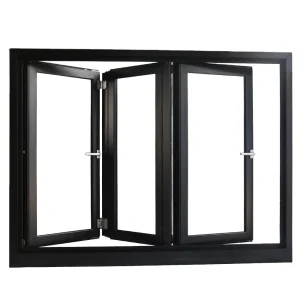

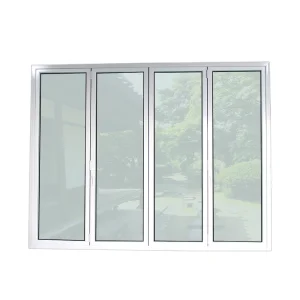

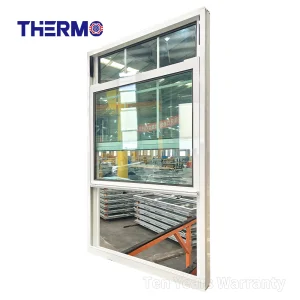

Explore our expanded export line including single/double hung, ultra-slim sliders, bi-folds, and Florida-approved impact pivot doors.
Direct answers to structural engineering, certification verification, minimum order quantities, and custom CAD integration questions for importers and distributors.
Our impact-rated pivot door series undergo physical testing at accredited third-party labs in accordance with TAS 201, 202, and 203 protocols. We provide formal Notice of Acceptance (NOA) documentation, Florida Product Approval (FPA) numbers, and engineering calculation packs certified by licensed US Professional Engineers (PE) for smooth local building permit approvals in coastal storm zones.
Utilizing our heavy-duty 6063-T6 extruded aluminum profiles and reinforced hydraulic pivot spindles, ArmorSafe manufactures single-leaf pivot panels up to 3,500mm (137.7 inches) in width and 6,000mm (236.2 inches) in height, supporting total dynamic loads up to 600 kg (1,320 lbs) per leaf.
Large exterior metal doors exposed to direct solar radiation on the outside while air-conditioned inside experience thermal expansion differentials leading to panel bowing. ArmorSafe integrates anti-bi-metal polyamide thermal break strips (Technoform PA66GF25) paired with structural stabilization steel cores inside the aluminum profile pockets to maintain flat alignment across -30°C to +80°C ranges.
Our 48-person R&D team provides complete OEM/ODM support, including 2D CAD drafting, 3D BIM Revit model generation, custom anodized or PVDF color matching, specialized hardware cutouts (access control systems, magnetic locks, drop-down seals), and customized crating solutions for ocean freight protection.
We offer flexible MOQ structures catering to commercial developers and stocking hardware distributors alike. Standard sample/pilot orders are accepted starting at 1 unit for high-end custom pivot entry doors. Typical production lead time for standard anodized finishes is 20 to 25 days, with high-volume containerized shipments (20GP/40HQ) fulfilled within 30 to 35 days.
ArmorSafe provides a standard 10-Year Enterprise Warranty covering structural aluminum extrusions, surface finish integrity against peeling/chalking, and insulated glass seal integrity. Hydraulic floor pivot springs and active mechanical German multi-point lock systems carry a 5-to-10-year hardware replacement warranty.
